Guangzhou RJ-Bot Industrial Group is a high-tech enterprise specializing in the development and manufacture of intelligent pipeline robotic systems. With a top-tier product development team, the company operates dedicated departments for engineering, marketing, and after-sales maintenance.RJ-Bot integrates research and development with real-world engineering experience through self-operated and strategically cooperative engineering companies. Manufacturing is conducted at the Zhanjiang precision manufacturing center, ensuring stable quality and rapid delivery. The group holds various intellectual property assets, including design patents, utility model patents, and trademarks.
The G36 Grease Duct Cleaning Robot is specifically designed for narrow sealed spaces, such as kitchen exhaust pipelines. It utilizes a combination of chemical agents and high-temperature, high-pressure water to dislodge grease.

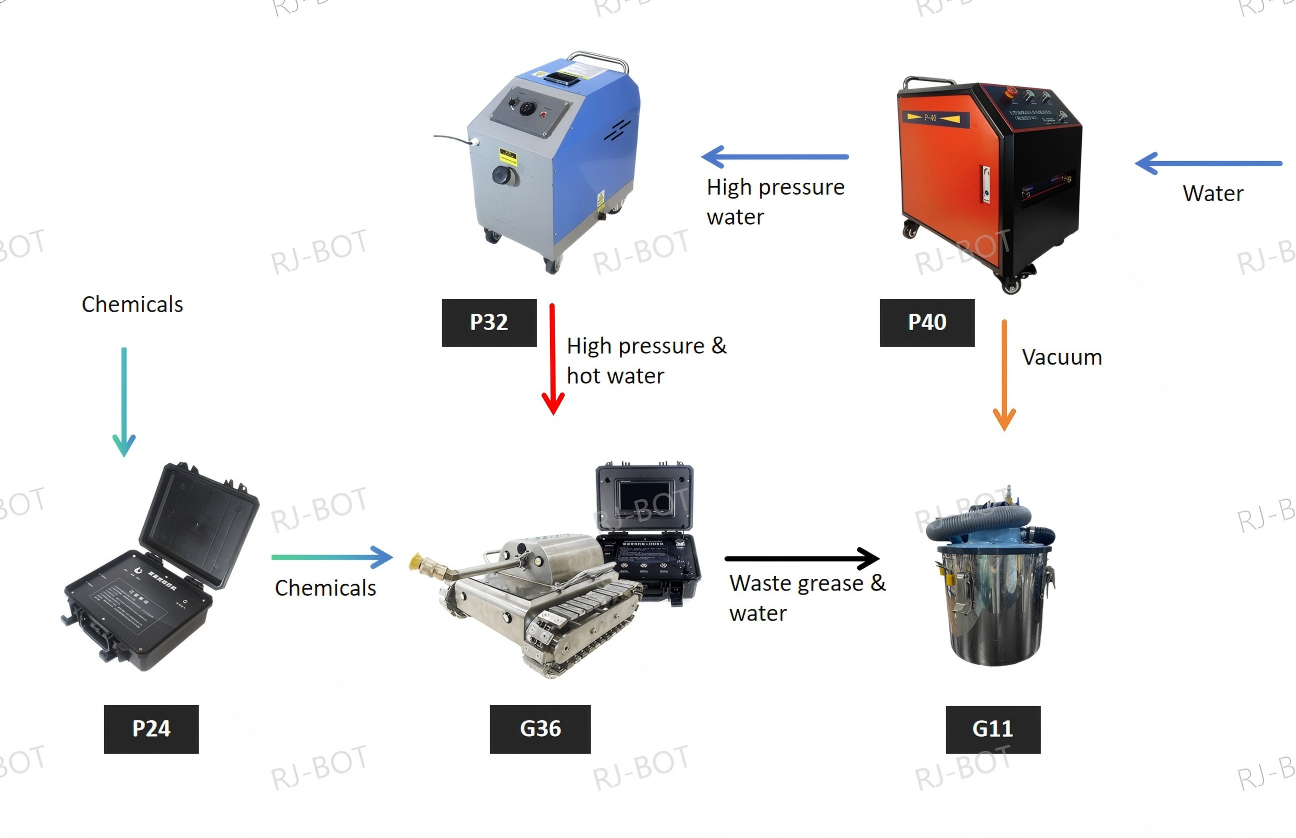

The G36 operates within a modular system of support machinery:
● P40 High-Pressure Washer with Suction: Provides high-pressure water up to 2900psi (180-200 BAR). It features dual 3000W vacuum motors to offer vacuum power to the G11 recycling bucket, allowing the robot to extract dirty water during the cleaning process.
● P24 Spraying Machine (Dual Pump): Used for direct chemical spraying via a gun or to support the G36 robot inside the duct. Features backup pumps for reliability.
● P32 Diesel Heater: Provides hot water to enhance grease removal. Features a 20L capacity and weighs 11.65kg.
● G11 Waste Oil Recycling Bucket: Connects to the system for oil and water suction.
The Q-Series focuses on dry cleaning methods and flexible shaft technology for commercial HVAC systems, schools, factories, and government facilities.

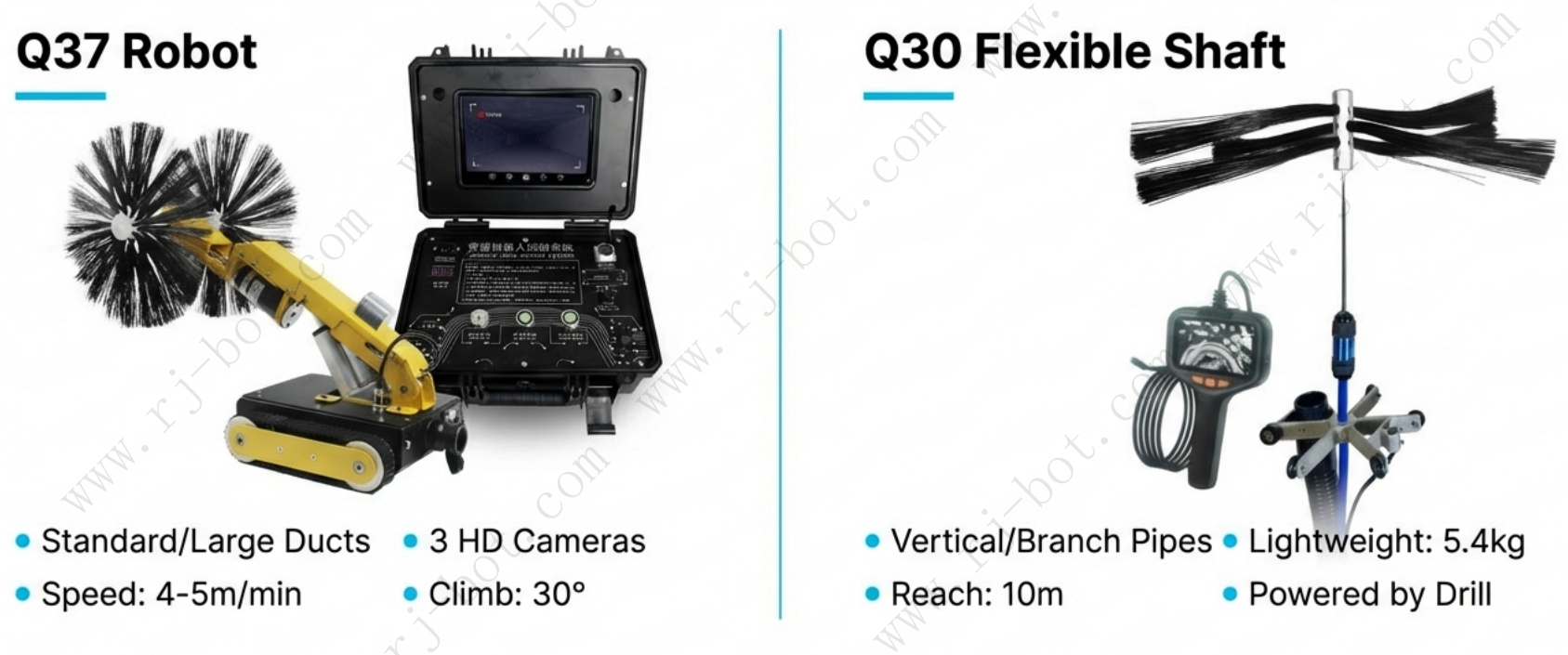

The Q37 is a modular "Suck-and-Scrub" system engineered for 25-75cm commercial ducts. It employs a three-step dry cleaning process:
1. Robotic Scrub: Nylon brushes dislodge grease, mold, and particulates without scratching inner walls.
2. Real-Time Inspection: Triple HD infrared vision (front/rear/wide lens) maps duct integrity and identifies microbial growth.
3. Closed-Loop Extraction: An integrated vacuum port connects to negative pressure suction to capture 99.97% of contaminants.Q37 Performance Advantages:
● Labor Savings: Cleans 50m of ductwork in 60 minutes (compared to 4 hours manually).
● Mobility: Rubber tracks conquer 30° slopes and 22cm obstacles.
● Patented Technology: Modular heads allow switching between single and double brushes in minutes.
● Q30 Strong Flexible Shaft: A 10M high-elastic steel shaft driven by an electric drill (above 50Nm). Includes a 1024*600 display and one camera.

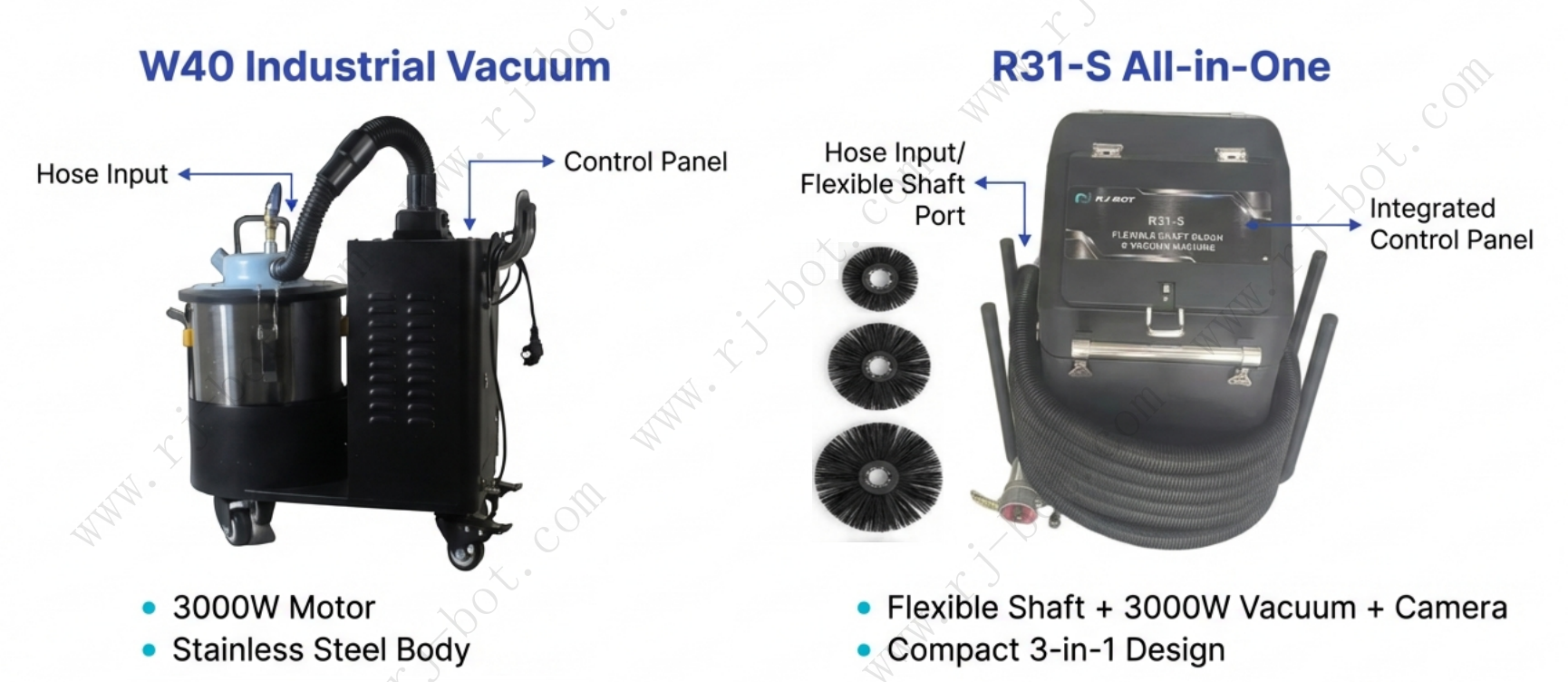

● R31-S Flexible Shaft Clean & Vacuum Machine: An all-in-one unit with 370W cleaning power and a 30,000W vacuum system (35L volume).
● W40 Industrial Vacuum: A 3000W motor unit designed for use with Q30, Q37, or Q40 robots. Features a 304 stainless steel 20L bucket.
The K-Series provides specialized robotic crawlers for municipal and industrial sewer and pipeline inspections.

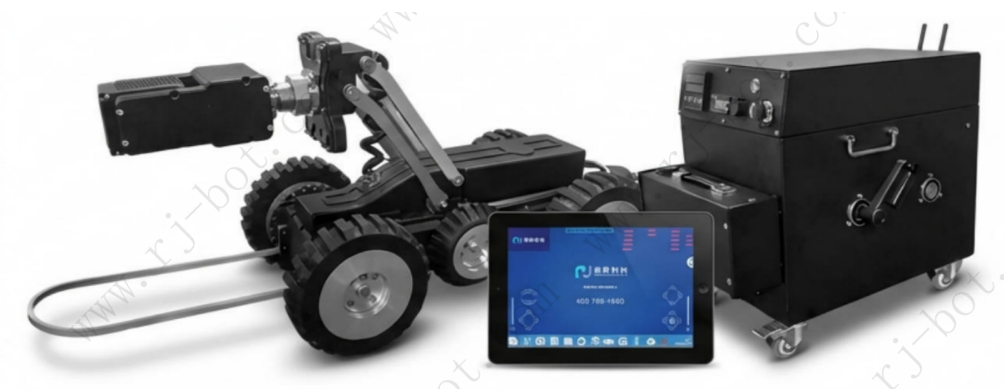

The K20 is the 2026 flagship high-definition inspection robot for pipes ranging from DN200 to DN2000mm.
● Optics: Upgraded 5.0 Megapixel camera sensor for crystal-clear defect identification.
● Movement: 6-wheel drive with ≤30° climbing capability and an electric lift to center the view in large pipes.
● Control: 9-inch HD touch tablet supporting text entry, overlay information, and one-click report generation.
● Durability: IP68 fully waterproof design with stainless steel housing.

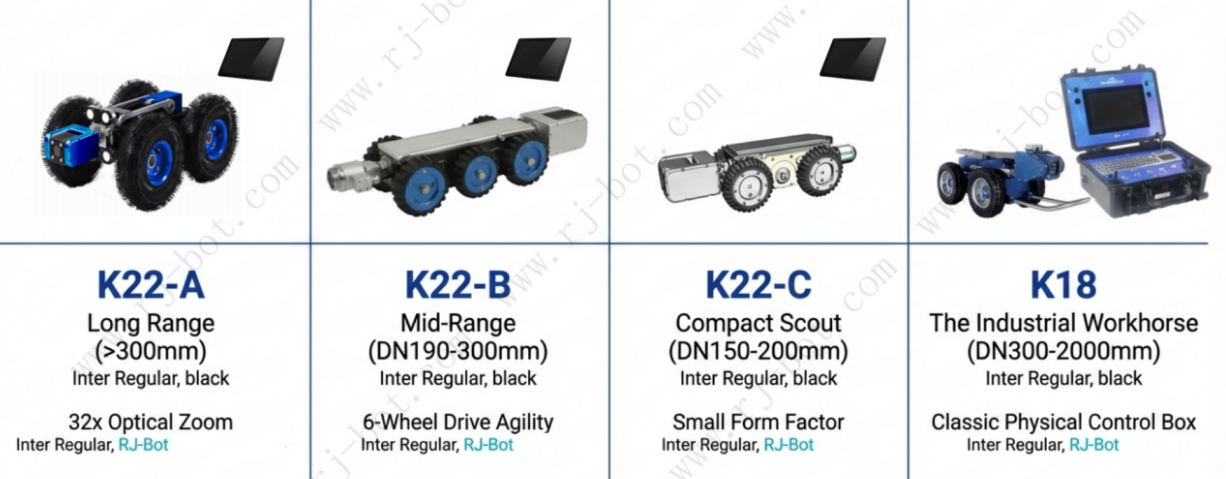

● K22-A (Large Diameter): Designed for pipelines >300mm. Features a powerful 32x optical zoom for inspecting distant defects without moving the crawler.
● K22-B (Mid-Range Specialist): Specifically engineered for DN190-300mm pipelines where larger robots might get stuck. Features 6-wheel drive for stability in slippery environments.
● K22-C (Compact Access): The smallest form factor in the series, capable of entering 150mm pipes (DN150-200mm).
● K18 (Industrial Standard): The "classic workhorse" for DN300-2000mm pipes. Features a professional control box with physical joysticks and a keyboard for tactile feedback.

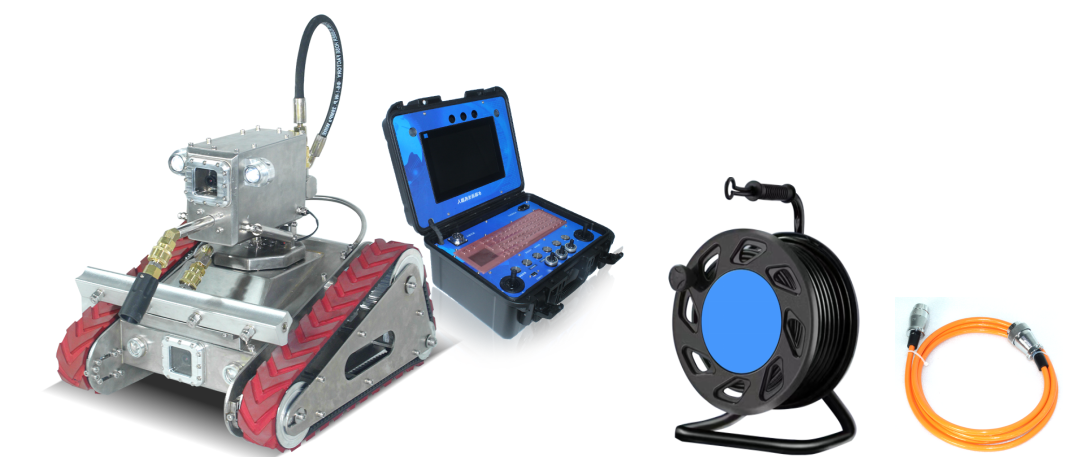

The S6 Tank Cleaning Robot is an automated flushing and cleaning system designed for medium-sized sealed or semi-sealed spaces, such as water tanks. It is engineered to be safer, more environmentally friendly, and more energy-efficient than traditional manual working modes.
● 360° Rotating Nozzle: Features different scale settings (0, 15, 25, 40) to remove stubborn dirt and deposits precisely.
● High-Pressure Performance: Delivers up to 200 bar of pressure with a jetting range of up to 7 meters.
● Integrated Spray Row: Contains four fan-type spray nozzles for wide-area coverage and even distribution of water or cleaning agents.
● Visual Inspection: Equipped with three-color HD cameras (2 megapixel front, 5 megapixel rear) and four 3W LEDs for real-time identification of debris or structural damage in dark environments.
● Durability: Rated IP66 for resistance to water ingress in wet tank environments.
Applicable Scenarios: Cleaning manure ditches in pig/cattle farms, cleaning agricultural irrigation ditches, and maintaining municipal drainage ditches. Solves cleaning problems in high-risk pathogen environments, reducing human contact.

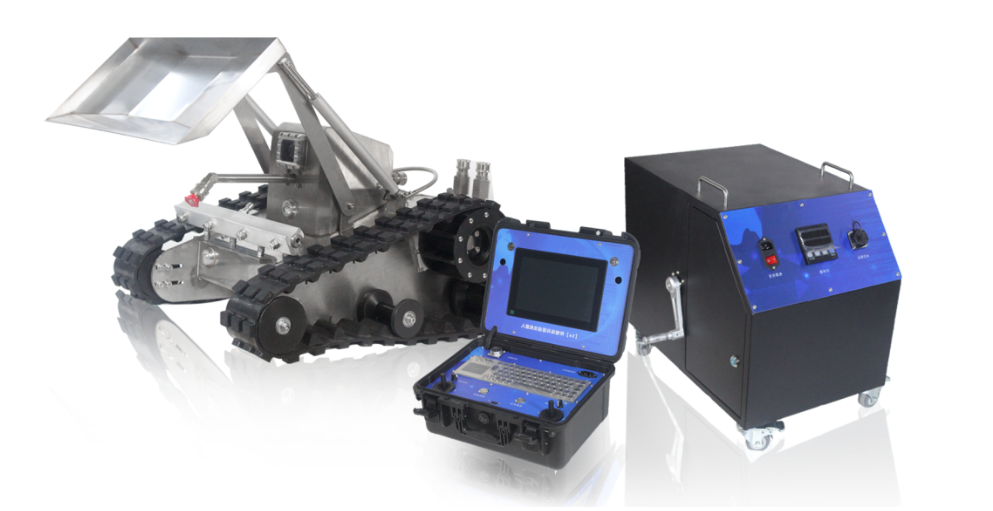

X6 Livestock Manure Ditch Cleaning Robot:
Uses: Combines a pusher and high-pressure water jet (200 bar) for cleaning manure, sludge, and algae.
Features: Equipped with a high-viscosity media scraper, IP65 waterproof, supports 60-meter remote control, reducing biosafety risks.
