Recently, RJ-BOT has finalized the technical development and initiated market promotion for its latest HVAC duct cleaning robot, the Q50 Robot. Designed for commercial and public spaces, this intelligent device integrates advanced features such as enhanced vertical cleaning range, multi-functional integration, and precision control systems, marking a significant technological leap in the HVAC duct cleaning industry.
video introduction link: Youtube

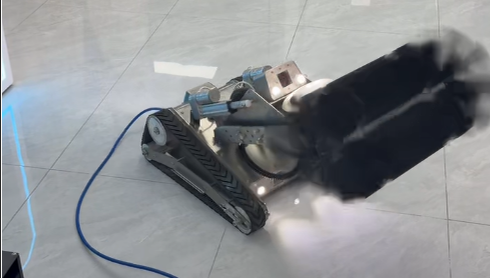

The Q50’s core upgrade lies in its vertical operational range—its maximum cleaning height has been increased from 750mm to 1185mm compared to previous models. Combined with a 400mm maximum extension length and 885mm lifting height, it can now efficiently clean oversized HVAC ducts in large factories, shopping malls, metro stations, and airports. Constructed with 304 stainless steel, the robot balances durability and lightweight design (33 kg total weight), ensuring stable performance in complex duct environments while minimizing wear and tear.Integrated Features: Cleaning, Monitoring, and EfficiencyTo address challenges like blind spots and dust residue in traditional duct cleaning, the Q50 incorporates a triple-camera intelligent monitoring system:
A 6MP primary camera records cleaning processes.

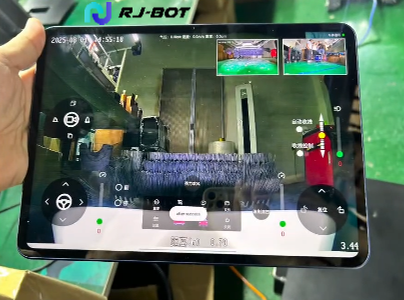

Two 5MP secondary cameras provide environmental insights.Operators can remotely control the robot and monitor real-time footage via a tablet, ensuring comprehensive coverage. Additionally, the Q50 features a 240W high-power blower module with a 102° wide-angle airflow, synchronizing dust blowing during cleaning. This reduces secondary contamination and boosts efficiency by approximately 40% compared to earlier versions.

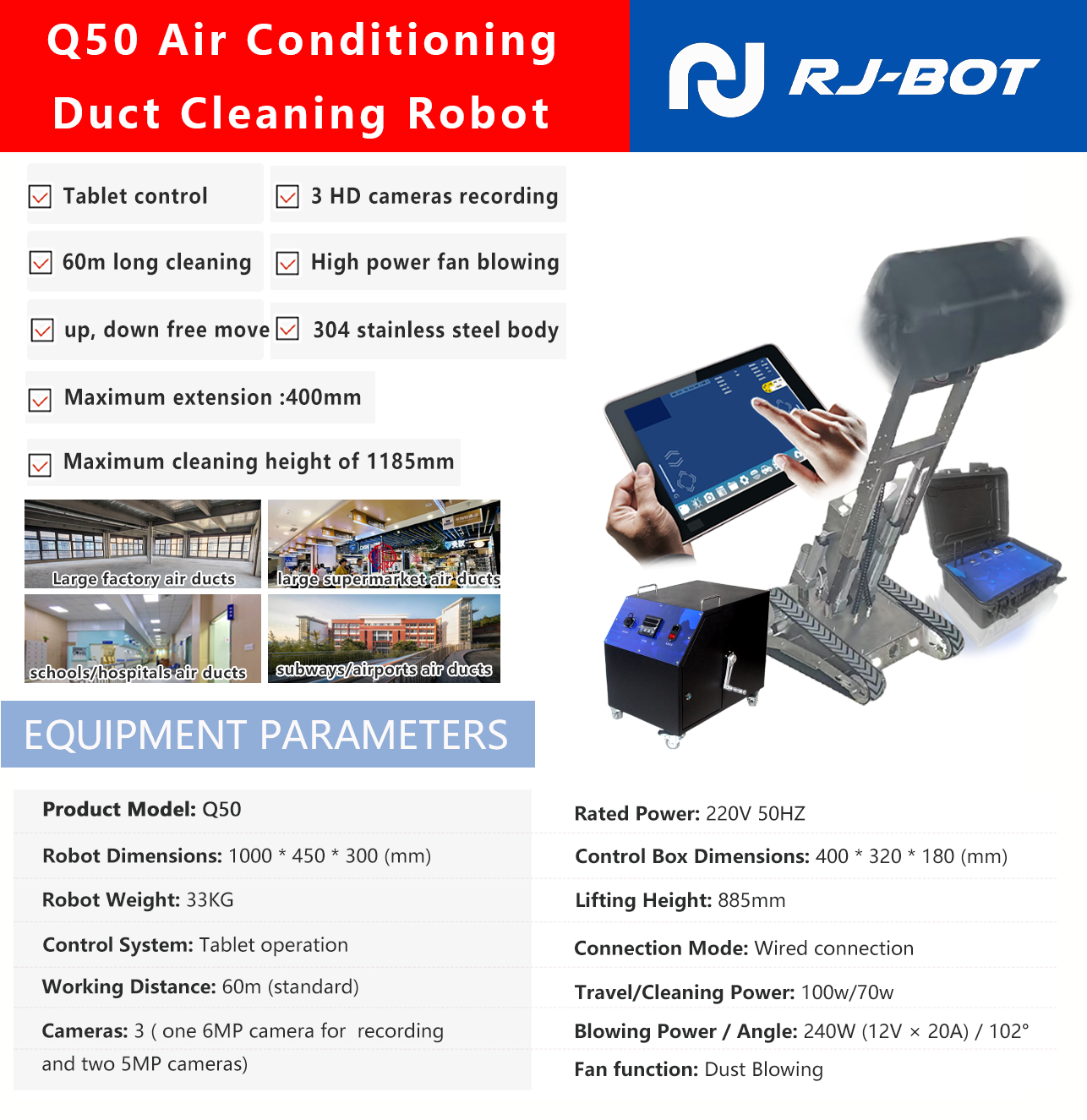

The Q50 maintains robust industrial standards:
Operational range: 60 meters per cycle.
Power modes: 100W (walking) / 70W (cleaning).
Control box: Compact 400×320×180 mm design with wired connectivity for stable signals.
Power compatibility: 220V 50Hz, aligning with commercial electrical requirements.
Targeting mid-to-high-end commercial markets, the Q50 aims to improve HVAC maintenance efficiency in office buildings, transportation hubs, and other large facilities. Its technological advancements reflect the industry’s shift toward smart, scenario-specific solutions, potentially driving HVAC duct cleaning from “extensive manual operations” to “precision maintenance.” Industry experts predict that the Q50 will set new benchmarks for automation and efficacy in this sector.
