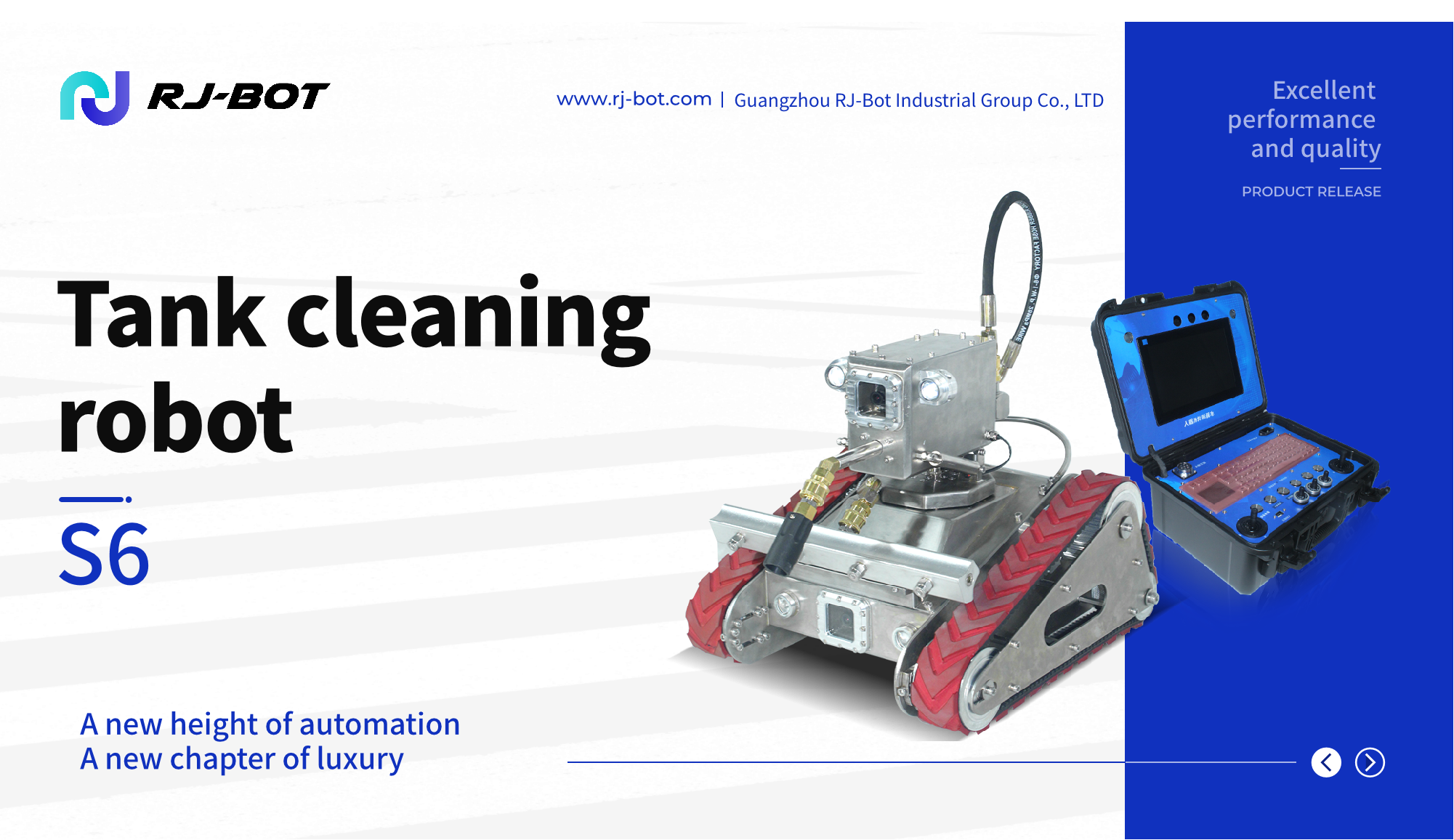

RJ-Bot has developed an automatic tank cleaning robot. The automatic flushing and cleaning control system for tanks is safer, more environmentally friendly and energy-saving than the existing working modes on the market. The automatic flushing and cleaning control system for tanks has solved the problems of wisdom and intelligence very well. It not only reflects the advantages of intelligent control technology, but also effectively saves water, electricity and manpower, and ultimately achieves the goal of high-efficiency operation.
360°Rotating Nozzle:The 360°rotating nozzle with different scale settings(0,15,25,40)can be adjusted according to the cleaning requirements.It can direct a powerful stream of water precisely to remove stubborn dirt and deposits at various distances.
Waterproof:With an IP66 rating,it is highly resistant to water ingress.This makes it suitable for use in wet tank environments without the risk of internal damage from moisture,ensuring long-term reliable operation.
Pressure:Delivering a pressure of 200 bar,it has the force needed to dislodge tough stains,algae,and other contaminants from the tank walls and floor.This high-pressure cleaning ensures a thorough and deep clean.
Integrated spray row:The four fan-type spray nozzles in the integrated spray row provide a wide-area coverage.They can distribute cleaning agents or water evenly over a large surface,enhancing the cleaning efficiency and effectiveness.
Camera:The three-color HD cameras,including a 2 front camera and a 5 rear camera,offer high-resolution imaging.They enable operators to clearly see the interior of the water tank,identify dirt,debris,and potential damage in real-time.
LED:The four 3w LEDs illuminate dark areas inside the water tank.This enhanced visibility helps operators to detect dirt,cracks,or other issues that might otherwise go unnoticed,improving the quality of the cleaning and inspection.
| Specifications | |

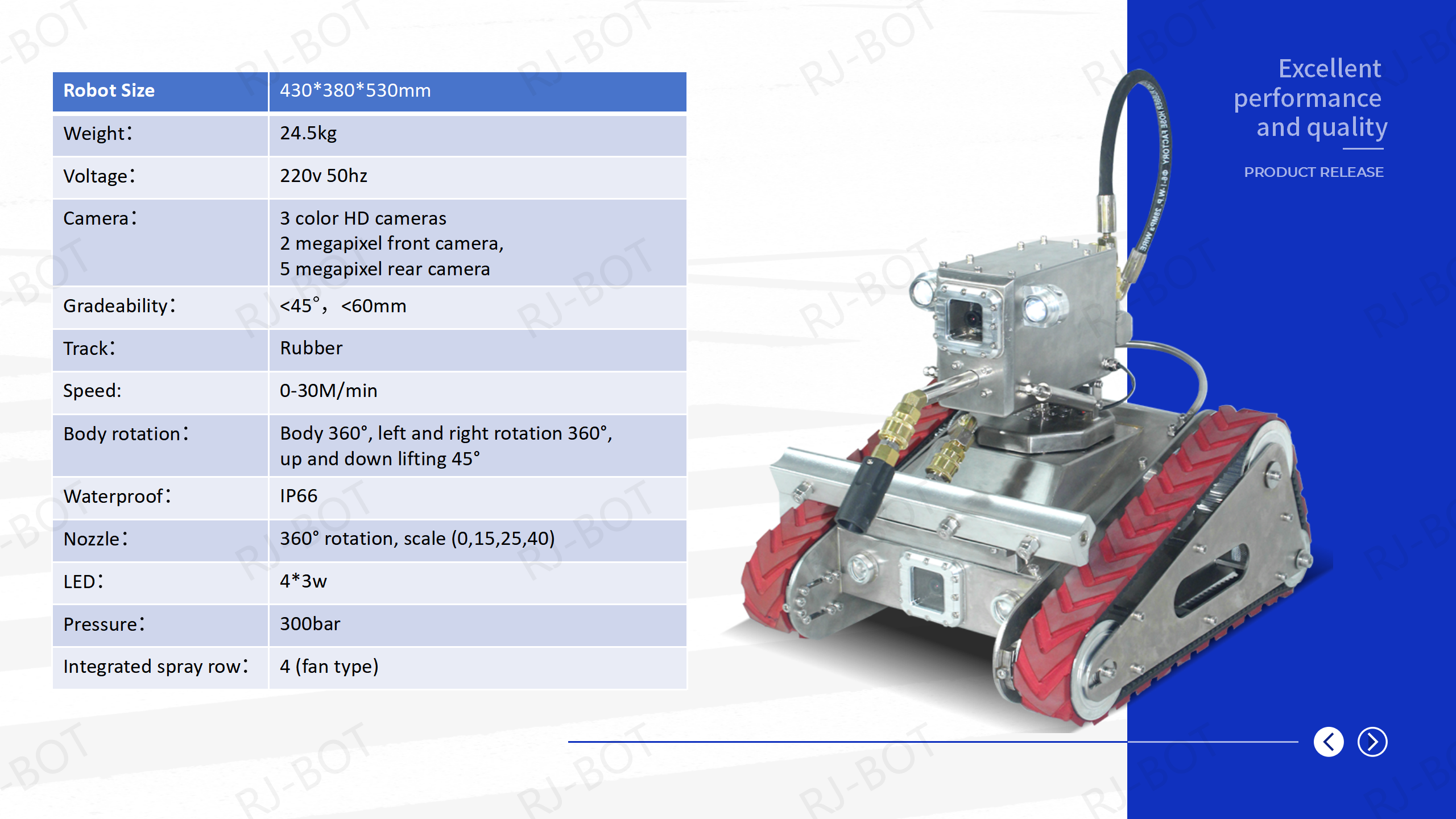

| Robot Size | 430*380*530mm |
| Weight： | 24.5kg |
| Voltage： | 220-230v 50hz |
| Camera： | 3 color HD cameras, 2 megapixel front camera, 5 megapixel rear camera |
| Gradeability： | <30°，<60mm |
| Track： | Rubber |
| Speed: | 0-30M/min |
| Spray head rotation： | Left and right rotation 360°, up and down lifting 45° |
| Waterproof： | IP66 |
| Nozzle： | 360° rotation, scale (0,15,25,40) |
| LED： | 4*3w |
| Pressure： | Max 200bar |
| Jetting range | Max 7 meters |
| Spray row: | 4 (fan type) |

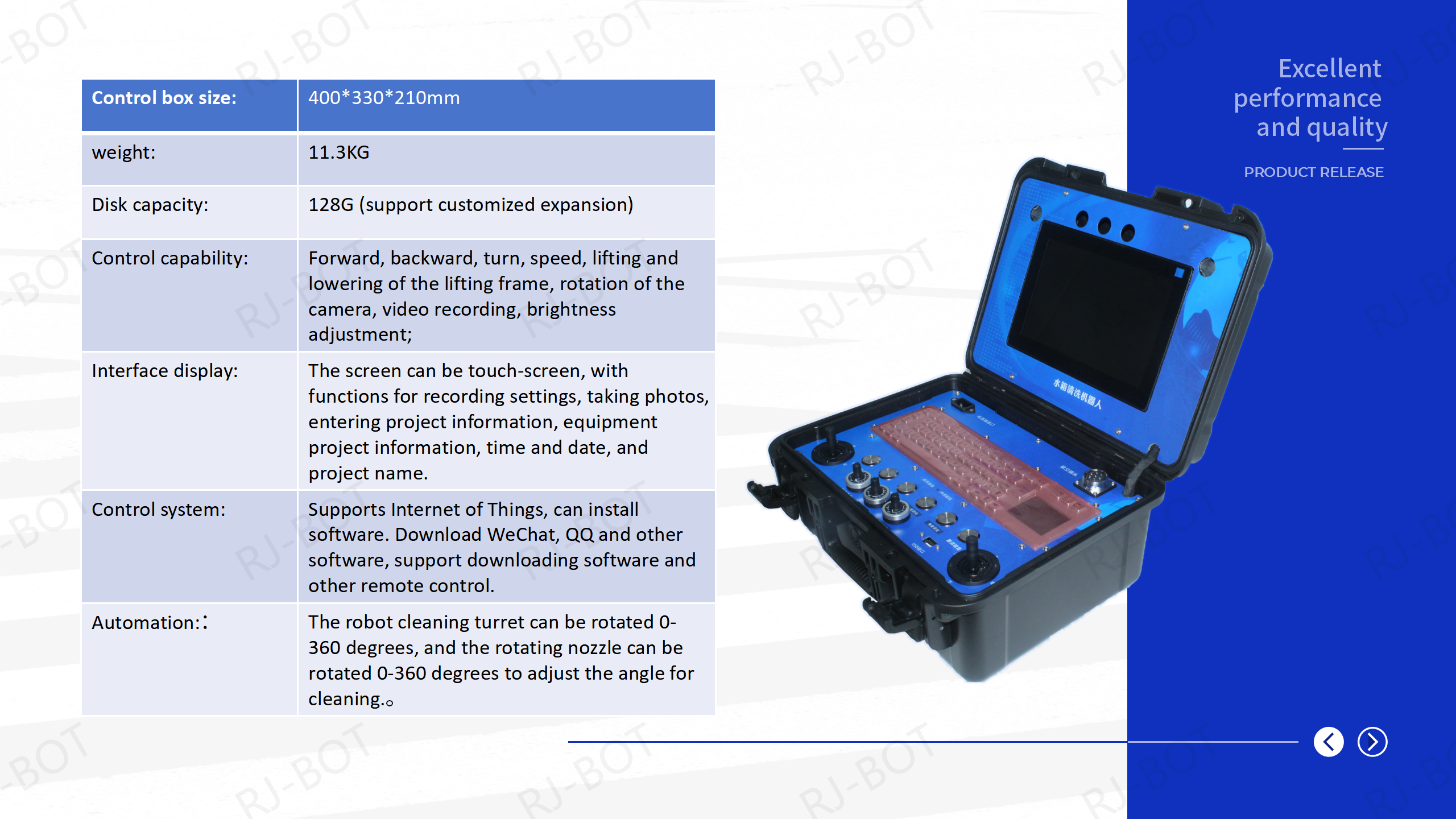

| Control box size: | 400*330*210mm |
| weight: | 11.3KG |
| Disk capacity: | 128G |
| Control capability: | Forward, backward, turn, speed, lifting and lowering of the lifting frame, rotation of the camera, video recording, brightness adjustment; |
| Interface display: | The screen can be touch-screen, with functions for recording settings, taking photos, entering project information, equipment project information, time and date, and project name. |
| Control system: | Supports Internet of Things, can install software. Download WeChat, QQ and other software, support downloading software and other remote control. |
| Automation:： | The robot cleaning turret can be rotated 0-360 degrees, and the rotating nozzle can be rotated 0-360 degrees to adjust the angle for cleaning. |

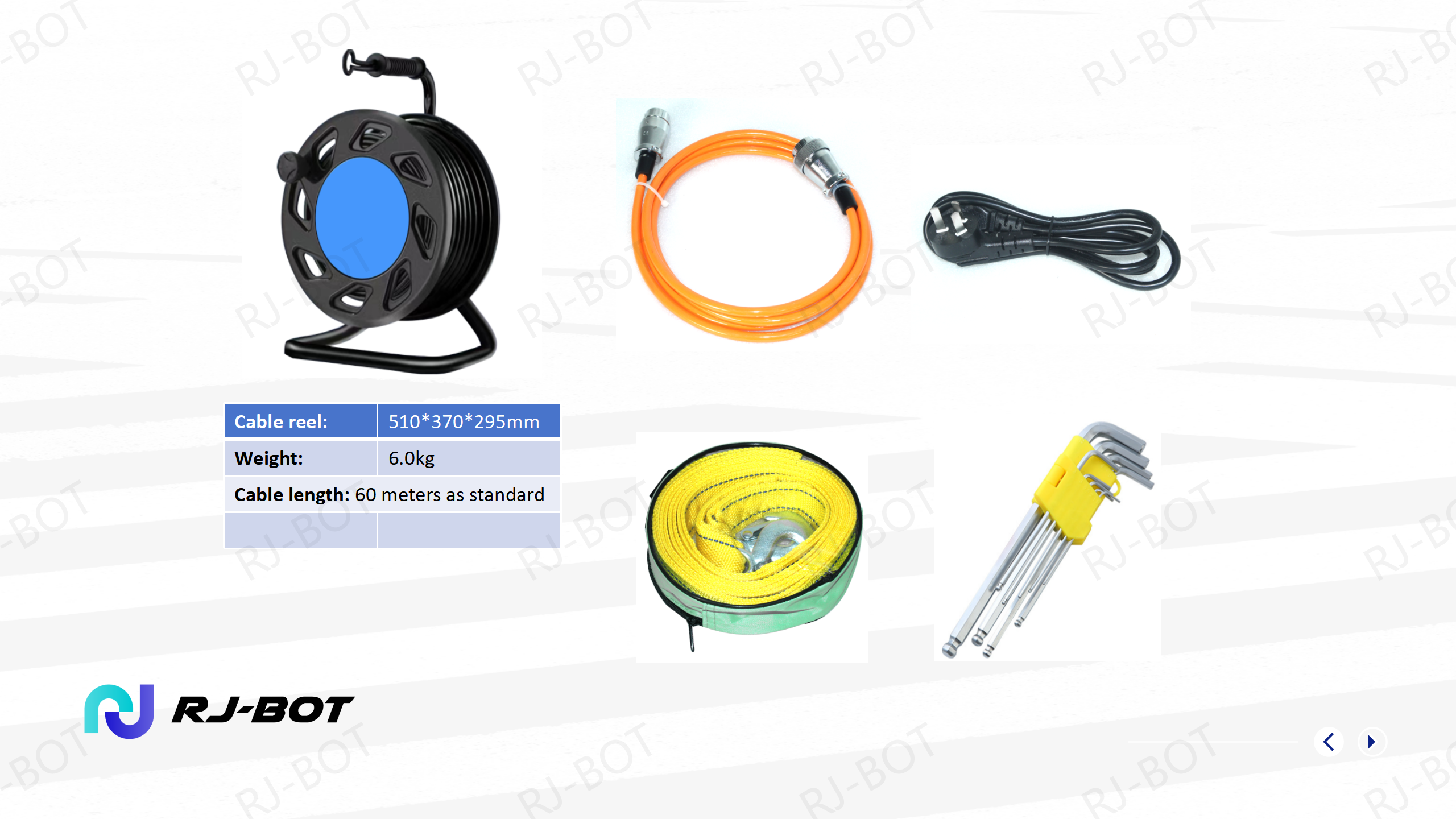

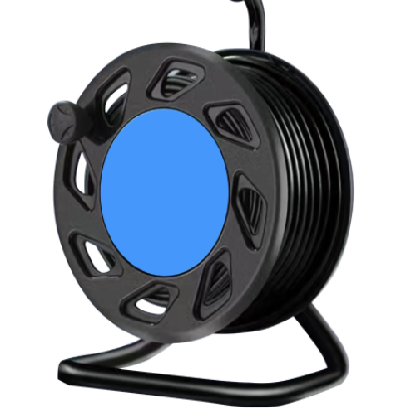

| Cable reel size: | 510*370*295mm |
| Weight: | 6.0kg |
| Cable length: | 60 meters |

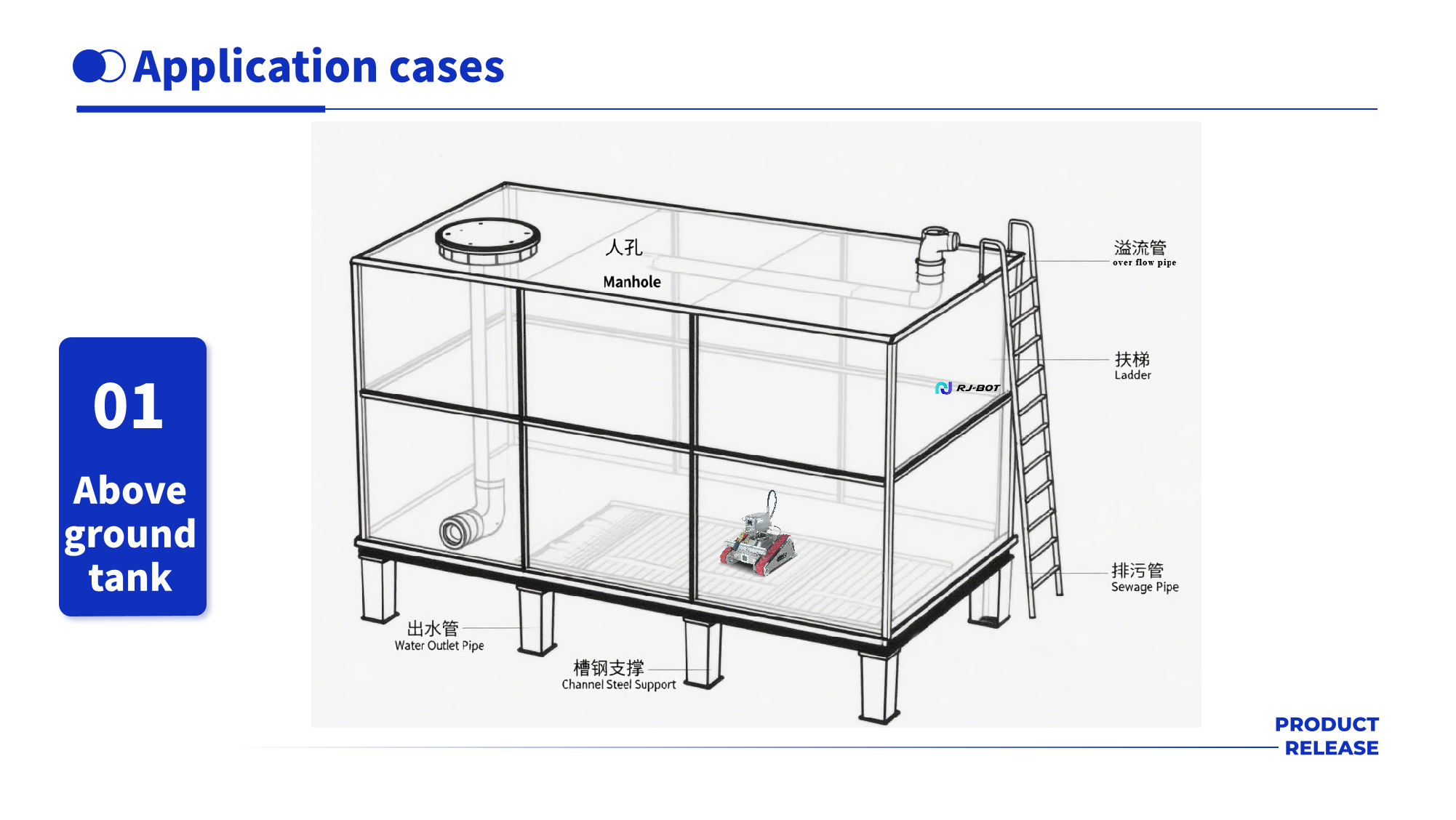

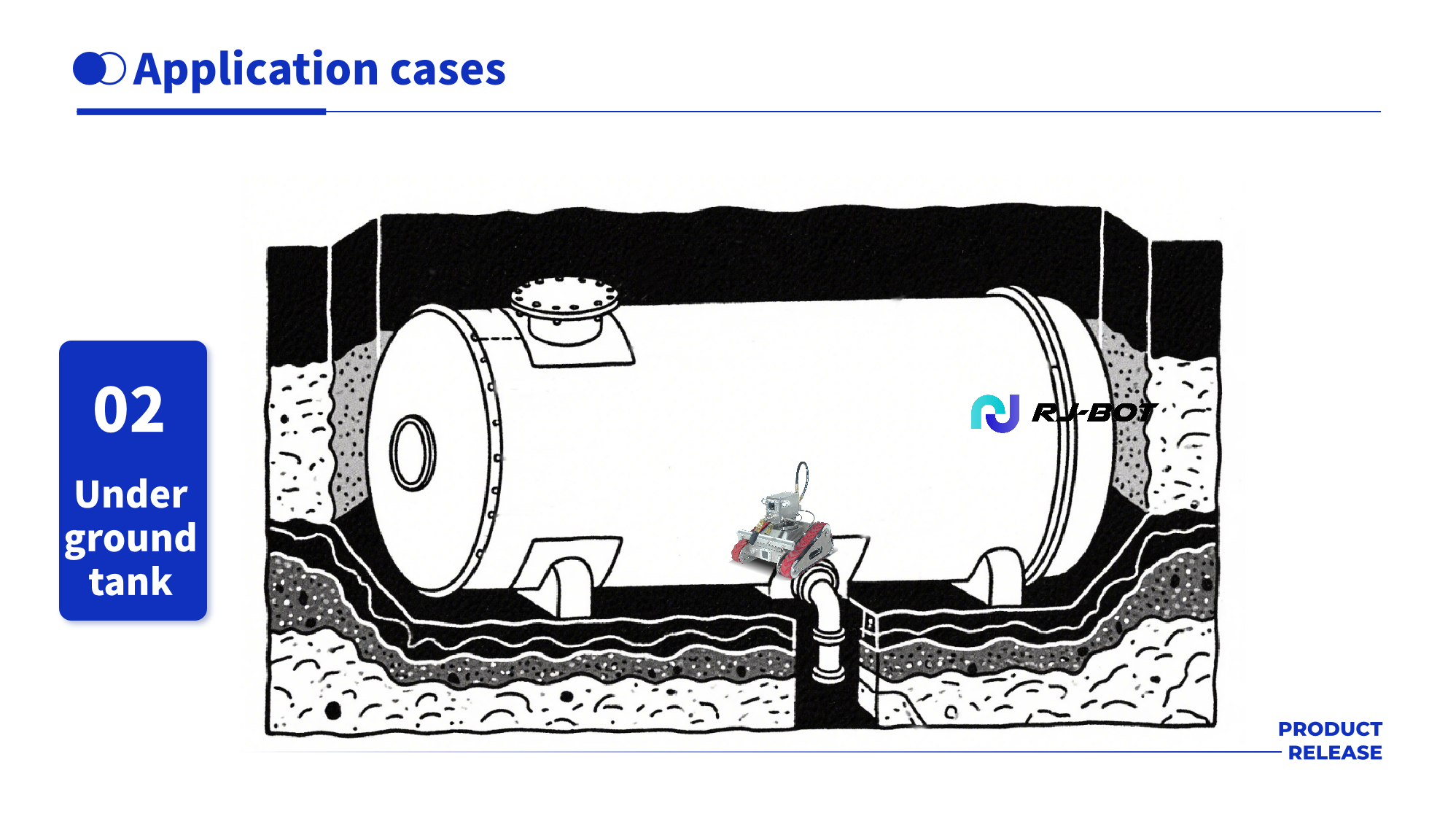

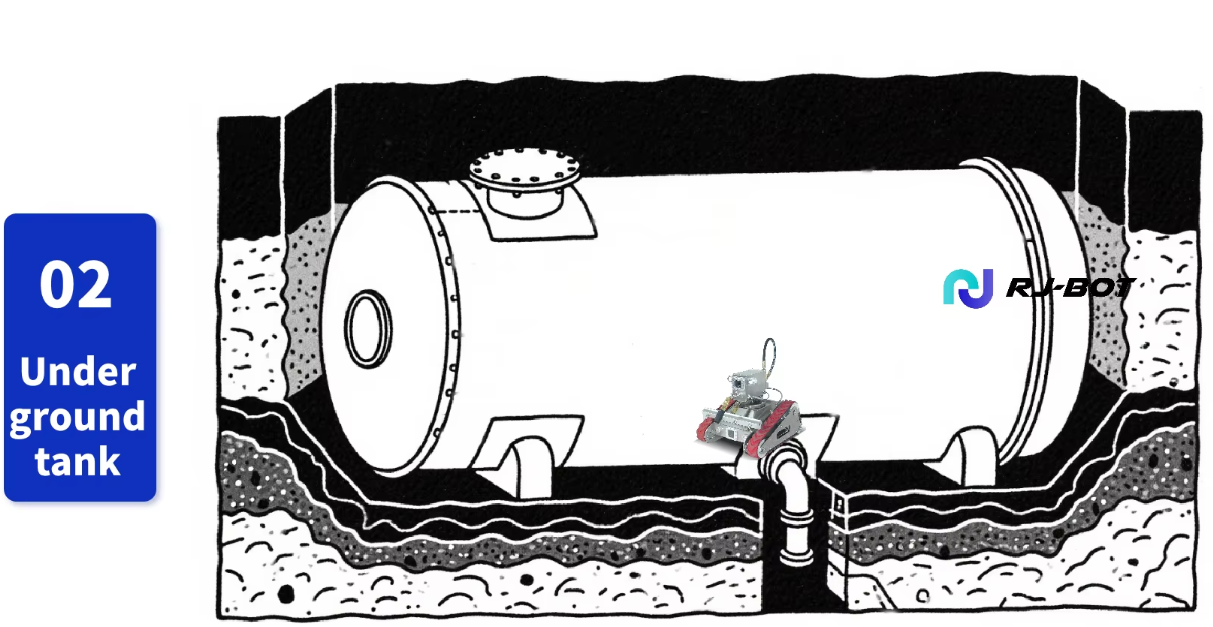

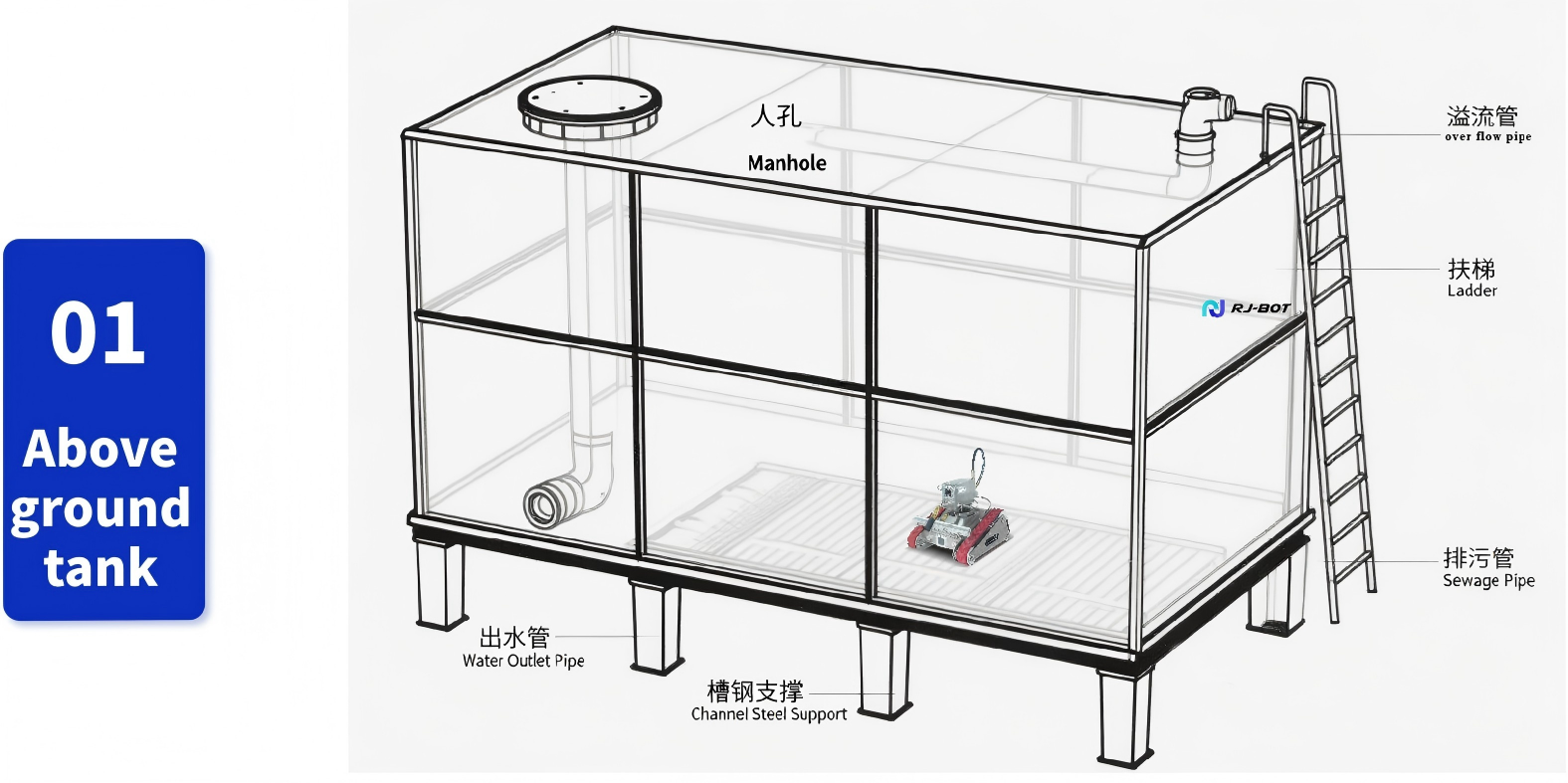

A: S6 is suitable for medium-sized sealed or semi-sealed spaces (e.g., water tanks), while G36 is designed for narrow sealed spaces (e.g., narrow kitchen pipes).
A: S6 can be used for non-flammable and non-explosive materials storage tanks.
