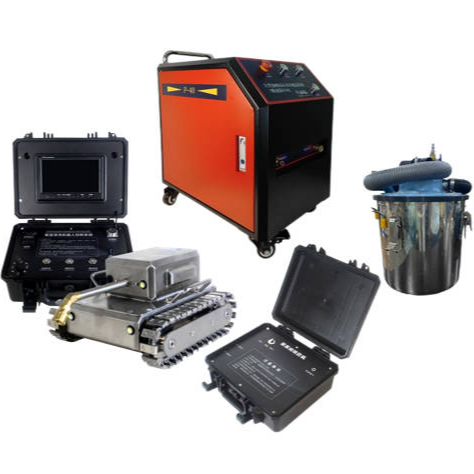

Complete Grease Duct Cleaning Machine

Industrial-Grade Solutions for Commercial Exhaust Systems

Machine-Driven Approach

1. G31 Robotic Cleaning Machine: Precision in Narrow Ducts

Unlike generic "duct cleaning robots", the G31 specializes in 280-600mm commercial kitchen ducts with features:

Navigation: Maps duct networks and identifies high-risk grease pockets

Dual-Module Cleaning:

Rotary water jet scrape hardened deposits

Integrated chemical nozzles apply BESA-approved solvents

Compliance Documentation: Auto-generates timestamped reports for insurance audits

Technical Edge: Magnetic wheels enable vertical shaft traversal - critical for high-rise hotel kitchens.

2. P40 High-Pressure & Vacuum System: Industrial-Grade Power

When paired with the G31, this 2900 PSI pressure washing machine solves key industry challenges:

Simultaneous Wash/Extraction: Twin 3000W vacuum motors prevent contaminated water leakage (meeting OSHA Standard 1910.141)

Flow Optimization: Adjusts pressure based on grease density (verified by thermal sensors)

Efficiency Data: Cleans 12m/hour vs manual scraping's 3m/hour - ideal for factory canteens with 100m+ ducts.

3. P24 Chemical Spray Machine: Smart Sanitization

This dual-pump system addresses bacterial growth in ducts - a hidden FDA violation risk:

Two-Stage Process:

Degreaser application via high-velocity spray gun or robot

Disinfectant fogging integrated with G31 robot

Zero-Downtime Design: Backup pump activates automatically if primary fails

4. P32 Diesel Heating Machine: Cold-Climate Solution

Essential for meat processing plants where fats solidify:

95°C Water Output: Melts congealed animal grease in sub-zero environments

Fuel Efficiency: 30% less diesel than competitors

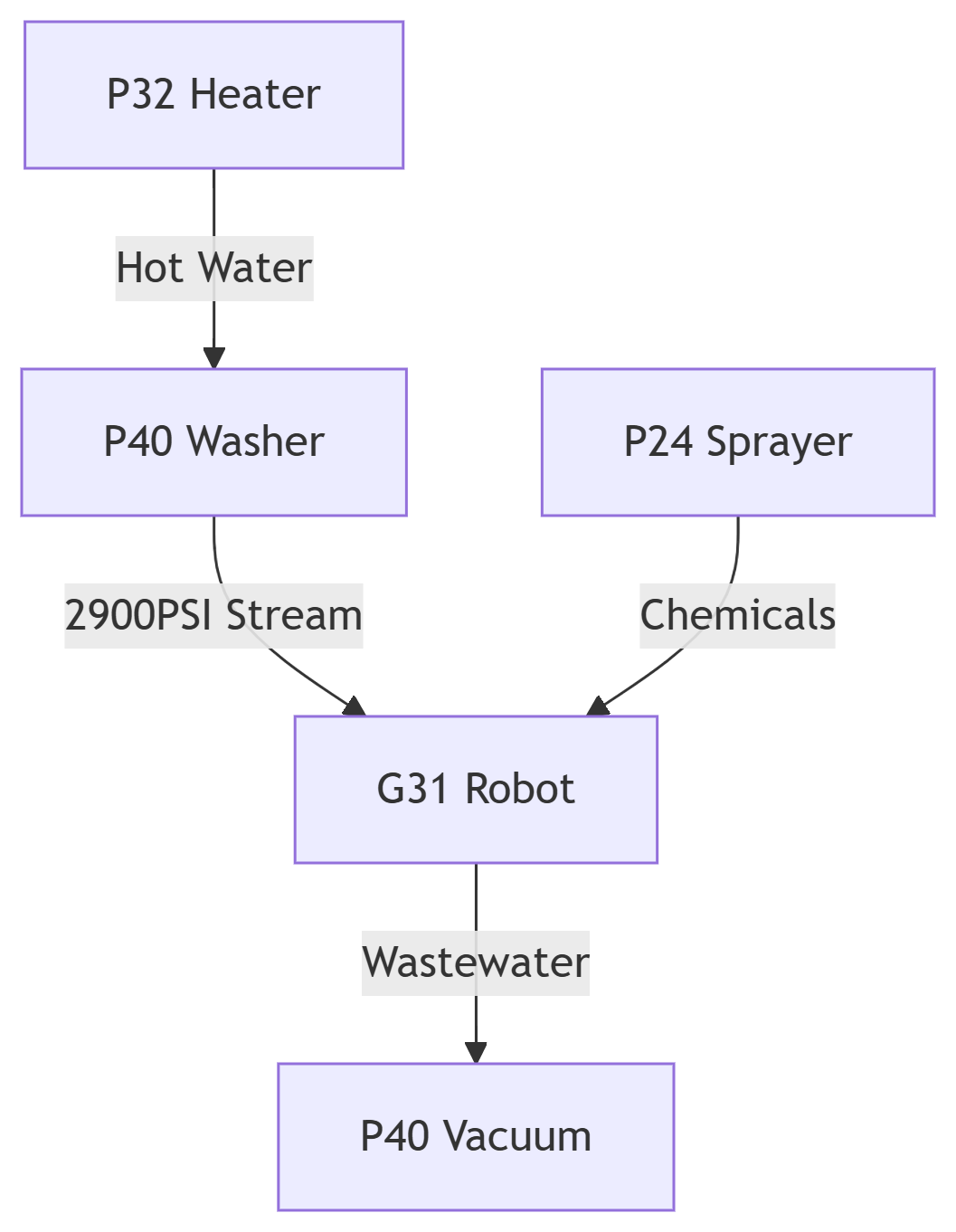

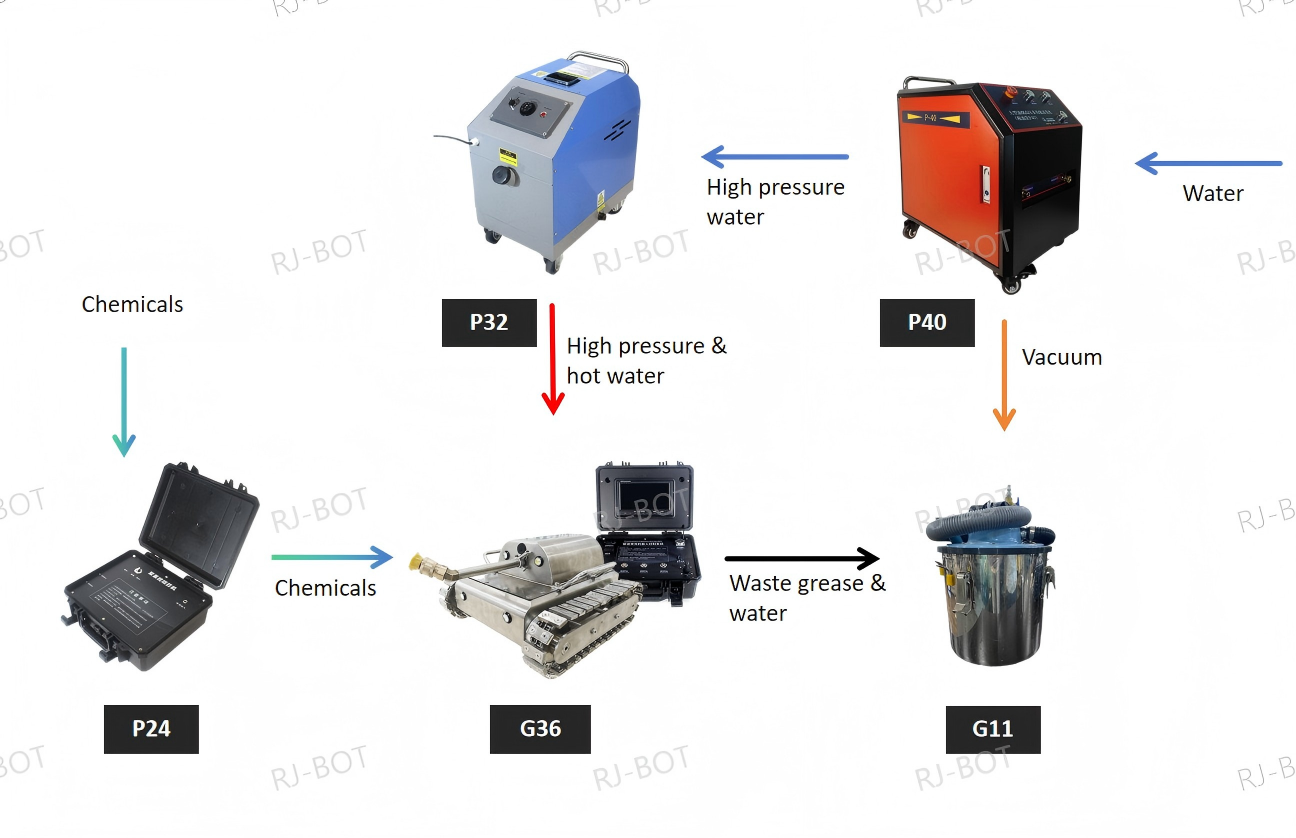

System Integration: How Machines Work Together

Operational Workflow:

1. Inspection Phase: G31 maps duct with HD cameras

2. Pre-Treatment: P24 applies degreaser to heavy buildup zones

3. Core Cleaning: P40 delivers heated high-pressure water via G31

4. Validation: Robot rescans, generating digital compliance reports

Industry-Specific Applications

1. Restaurants & Hotels: Beyond Basic Compliance

Problem: Luxury hotels need silent overnight cleaning to avoid guest disruption

RJ-BOT Solution:

Cleans 15m vertical ducts in 90 minutes

2. Food Processing: Hazardous Environment Compliance

Problem: FDA requires allergen cross-contamination prevention

RJ-BOT Solution:

P24's food-safe sanitization protocols

Sealed machines prevent water ingress in high-moisture areas

3. Fire Departments: Prevention Partnerships

Problem: 72% of fire inspectors lack duct assessment tools

RJ-BOT Solution:

Training programs on reading robot-generated risk scores

Shared NFPA 96 compliance dashboards

Technical Specifications Table

FAQs: Commercial Kitchen Cleaning Machines

Q: How often should ducts be cleaned with machines?

A: Frequency depends on volume:

High-output kitchens: Monthly (24hr restaurants)

Medium-volume: Quarterly (school cafeterias)

Pro Tip: Use G31's grease thickness reports to customize schedules.

Q: Can these machines clean 90° duct elbows?

A: The G31's articulated joints navigate sharp in certain circumstances.

Q: What makes RJ-BOT different from Tegras systems?

A: Three key advantages:

Narrower access (280mm vs Tegras' 300mm minimum)

Heated cleaning (P32 vs cold-water competitors)

Compliance automation (digital reports vs paper logs)

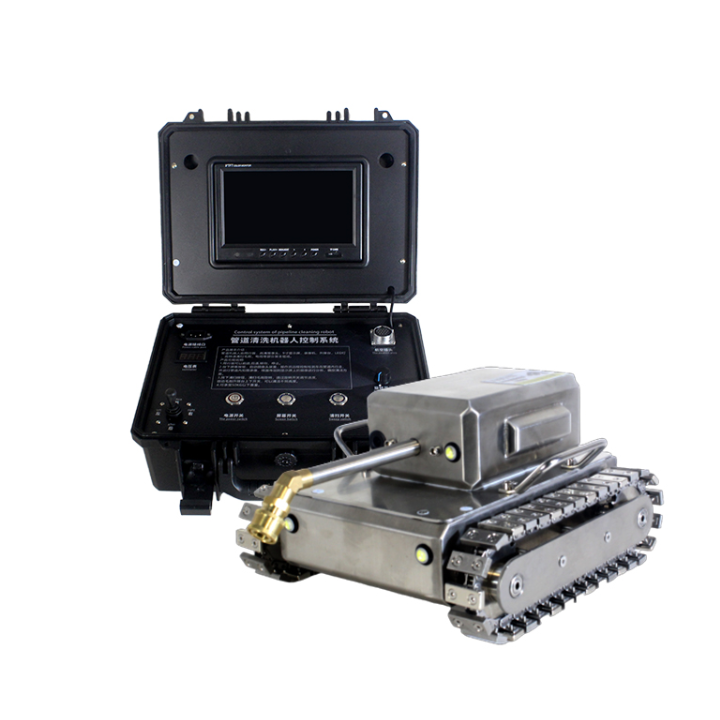

G31 Robot

* Obstacle-Crossing Ability:  <30°
* Rated Voltage: 220V / 110V / 230V
* Travel Speed: 7-8 m/min
* Spray Gun Rotation Angle: 360° spiral cleaning
* Product Dimensions: 280 (W) × 175 (H) × 410 (L) mm

P40 High pressure washer with suction function

- Oil Suction Power: 3000W
- Motor Power: 4.5KW
- Water Flow Rate: 20 L/min
- Water Pressure: 180-200 BAR
- Product Dimensions: 710 (W) × 730 (H) × 710 (L) mm

P24 Spraying machine (dual pump model)

- Inlet Hose Length: 2m
- Outlet Hose Length: 15m
- Wire Cross-Section: 0-2.2mm²
- Voltage/Power: 24V/100W × 2
- Product Dimensions: 310 (W) × 148 (H) × 330 (L) mm

P32 Diesel heater

- Fuel Tank Capacity: 12L

- Operating Temperature: 0-90°C
- Product Power: 300W
- Heating Rate: 10L/min
- Product Dimensions: 380 (W) × 670 (H) × 580 (L) mm

G11 Waste oil recycling bucket

- Product Weight: 11.65 kg
- Product Capacity: 20L
- Product Dimensions: 330 (W) × 450 (H) × 360 (L) mm
