X6 Livestock Manure Cleaning Robot
Autonomous Zero-Contact Solution for Pig Farms & Cattle Barns
IP65 Waterproof | 200bar Jets | 60m Remote Control | 92% Pathogen Risk Reduction
As a pioneer in agricultural robotics, we deliver biosecurity-compliant solutions for modern livestock farming. X6 livestock manure cleaning robot is an innovative device designed to solve the problem of manure ditch cleaning in farms such as pigs farm and chicken farm. It is a high-efficiency, cost-effective farm cleaning robot with features such as line-patrol navigation, obstacle avoidance, moisture and corrosion resistance, thereby replacing the traditional heavy manual cleaning work.Not only can it reduce manual maintenance costs and increases farming profits, but also it optimizes the farming environment to lower disease risks for livestock.

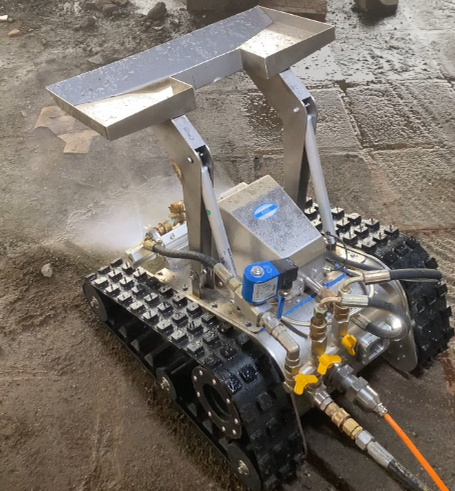

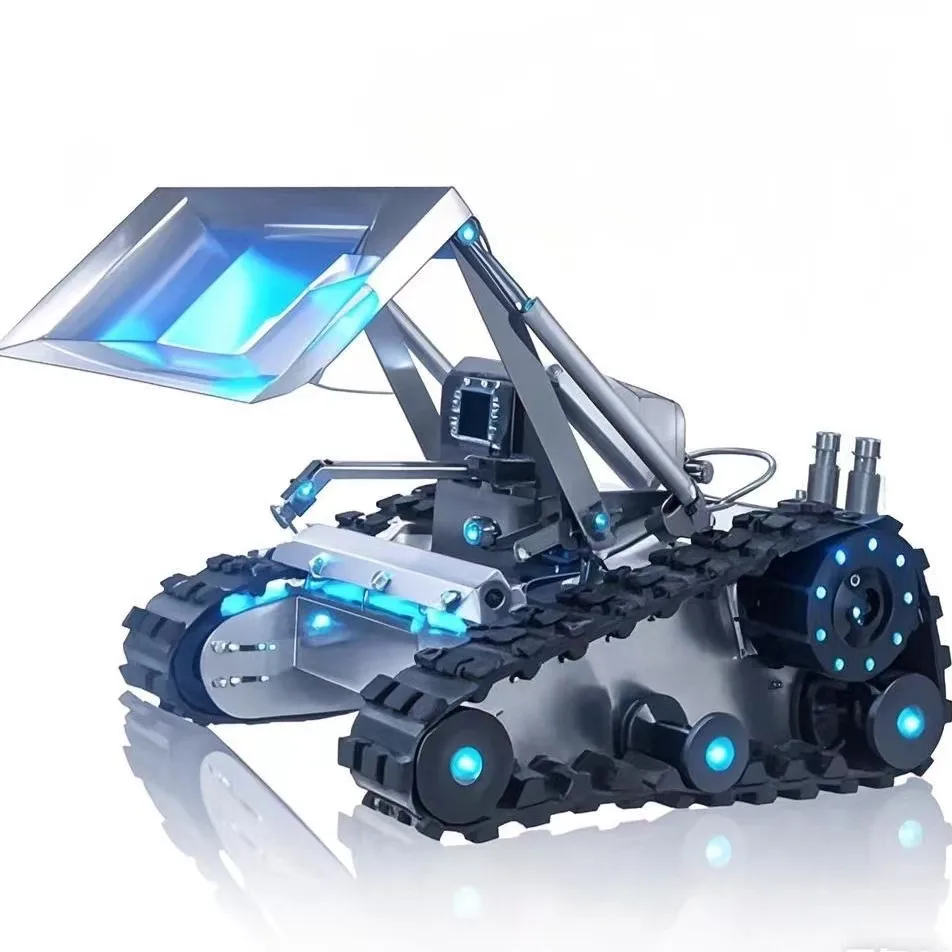

A. Built for 40–50 cm and wider manure channels X6 is sized for the channels found in pig farms and cattle barns: 680 × 480 × 330 mm body, 26.75 kg, working in channels of 40 cm and above. A stainless steel frame and imported anti-slip rubber tracks handle wet, corrosive floors, while the 220 mm lifting shovel clears compacted manure without manual entry.

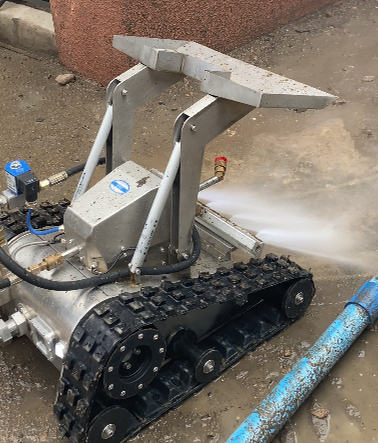

B. Three cleaning actions in one pass The robot combines a 360° rotating spray for washing and disinfection, a fan-shaped sweeping jet for wall-to-wall coverage, and a lift-and-push shovel for solids. The water jet works up to 200 kg (2900 PSI) and reaches 7 m, enough to soften dried manure before the shovel passes. Travel speed is adjustable from 0 to 30 m/min, and the body rotates 360° so the operator can work both sides of a channel from one position.

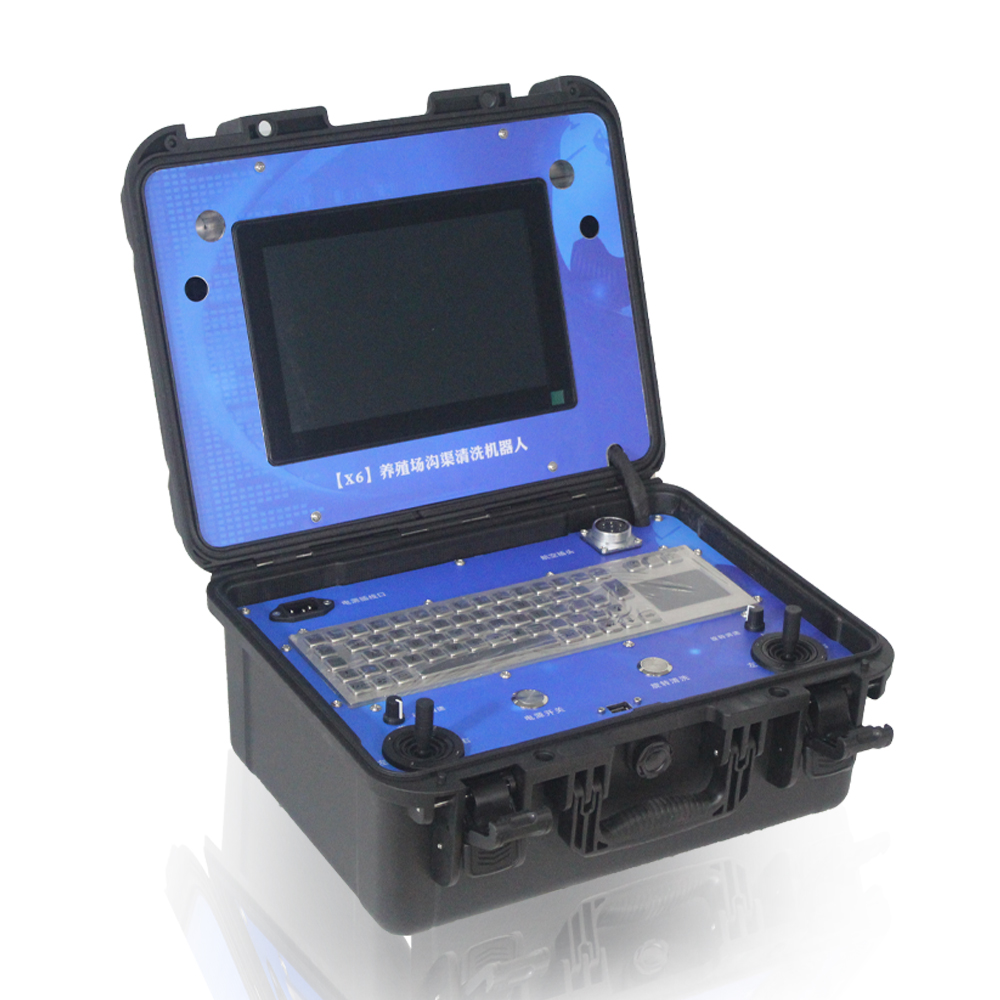

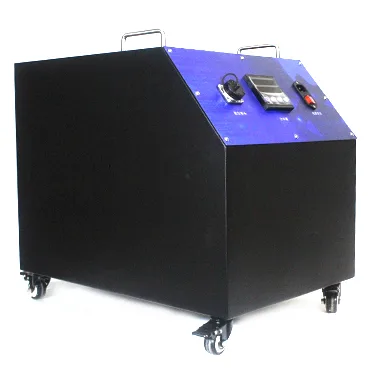

C. Operate from outside the channel — IP65, dual cameras, 15–60 m cable The X6 control box has a 10.1-inch 1280×800 screen, joysticks for travel and camera lift, and separate knobs for travel speed and spray rotation. Power input is 220 V or 110 V — there is no battery, so the robot runs continuously from the control box through the cable. The robot is IP65 rated and carries a front 2 MP and rear 5 MP camera with recording, so the operator stays outside the channel and documents the cleaned surface.

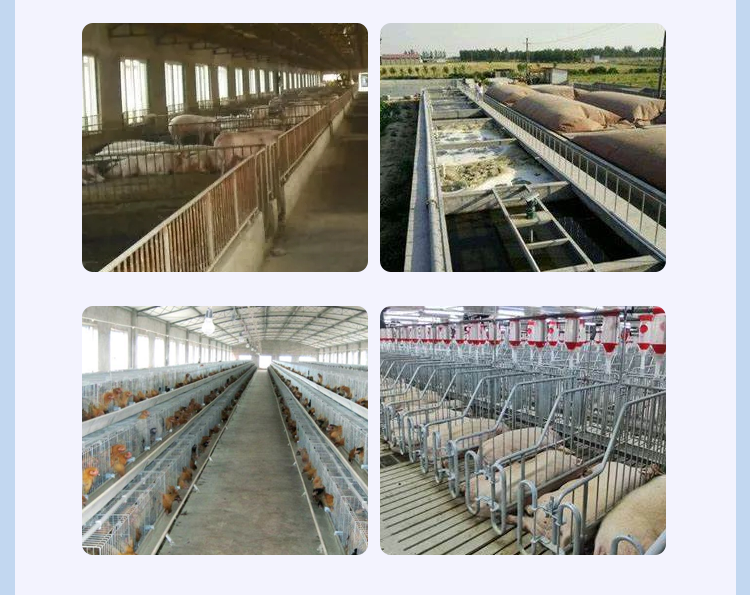

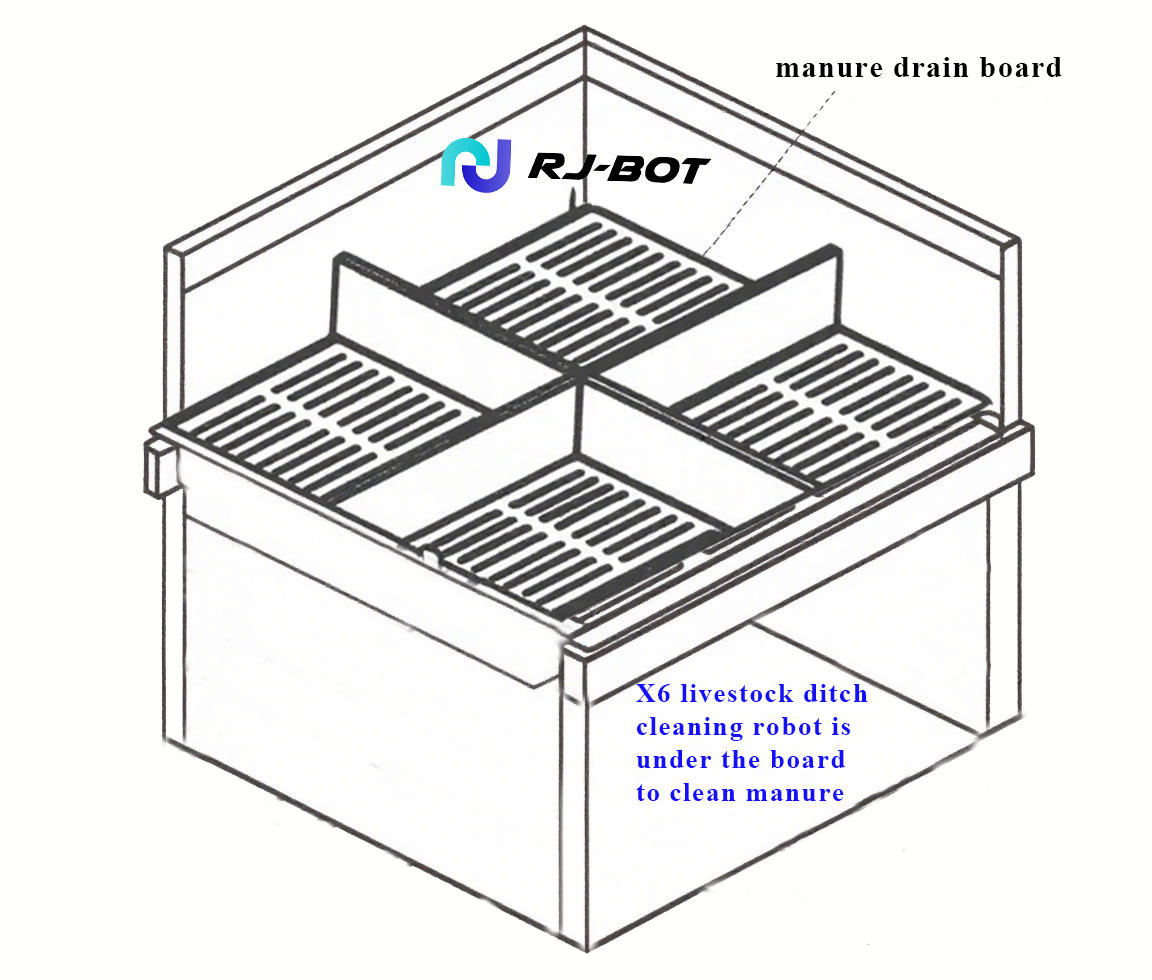

Pig farms — slatted and solid floor channels
Cattle barns — feed alley and manure channel cleaning
Poultry houses — manure belt/ditch cleaning where channel width allows
Share your channel width, floor type and barn layout before ordering so the configuration can be checked.
| Evaluation Dimension | Robot | Manual |
| Time & Effort | Finishes in minutes—just press a button. No sweat, no strain. | Takes hours of hard work—you scrub, scrape, and climb ladders. Backaches guaranteed. |
| Consistency | Uniform pressure & precision—every inch shines, no shortcuts. | Depends on your energy—some spots get missed, grime builds up over time. |
| Safety | No human entry—safely cleans from the outside, zero accidents. | Risk of slips, falls, or scrapes—climbing into tight spaces is dangerous. |
→ Crush hardened manure blocks in seconds → Prevent gutter clogging
360° Rotating Nozzle + 4 Fan-Shaped Jets
→ Remove stubborn algae & biofilm from walls/floors → Zero blind spots
Anti-slip Rubber Tracks + IP65 Rating
→ Zero slippage on wet manure surfaces → No maintenance downtime
60m Extended Remote Control
→ 1 operator controls safely from outside → No workers in hazardous gutters
| Field | Value | |
|---|---|---|
| Model | X6 | |
| Application | Livestock manure channels — pig farms, cattle barns | |
| Channel width | 40–50 cm and above | |
| Cleaning method | 360° rotary cleaning + fan-shaped spray + lift-and-push shovel | |
| Water pressure / jet range | Up to 200 kg / 2900 PSI; jet reaches 7 m | |
| Drive / speed | Stainless steel body, imported anti-slip rubber tracks, 0–30 m/min | |
| Slope / obstacle | Climbs up to 45°; crosses obstacles under 60 mm | |
| Waterproof | IP65 (robot) | |
| Cameras | Front 2 MP, rear 5 MP, video recording | |
| Weight | 26.75 kg (robot) / 10.9 kg (control box) / 7.9 kg (cable reel) | |
| Power | 220 V or 110 V AC input (output DC24V / DC12V); no battery | |
| Price | US$6,800（excluding freight and taxes） |
What channel width does the X6 clean?
— 40–50 cm and above. The lifting shovel is 220 mm and the body is 480 mm wide.
Does the X6 need water or high-pressure equipment?
— Yes. It connects to a high-pressure water supply; the manual describes both a fan-shaped sweeping channel and a 360° rotary cleaning channel selected by a valve switch.
Is the X6 battery powered, and what voltage does it use?
— No battery. The control box accepts 220 V or 110 V AC and outputs DC24V/DC12V to the robot through the cable, so it runs continuously during a shift.
What water pressure and jet range does the X6 deliver?
— Up to 200 kg (2900 PSI), with a maximum jet reach of 7 m — far enough to work channel walls without moving the robot for each pass.
How far can the robot work from the control box?
— Working distance is 15–100 m; single-run working length is 15–60 m.
Can it climb and cross obstacles?
— Climbing up to 45°, obstacle crossing under 60 mm, and the body rotates 360°.
Is it waterproof?
— The robot is IP65; the control box is IPX1 and should be kept on a stable, dry surface.
What cameras does it have?
— Front 200万 (2 MP) and rear 500万 (5 MP) cameras, with video recording and screenshots saved to the control box.
What is the warranty?
— 1-year warranty per the warranty card; consumables and unauthorised repairs are excluded.
