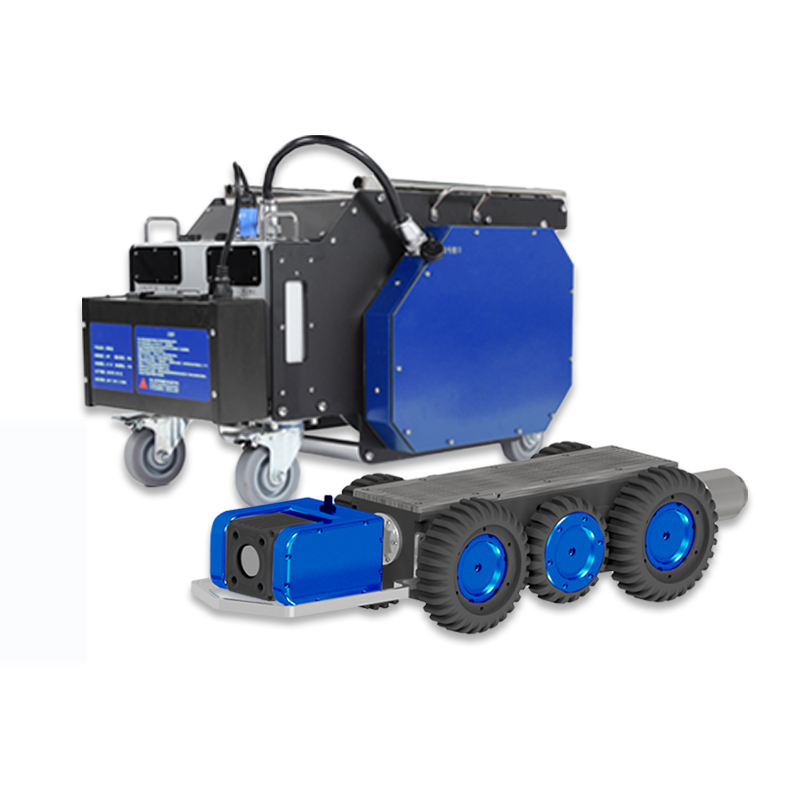

Crawler, 100 m cable, reel, battery and tablet — one complete system.
USD 7,200, includes: crawler, camera, 100 m cable & reel, battery, tablet, 4" + 10" wheel sets, tools, manual.

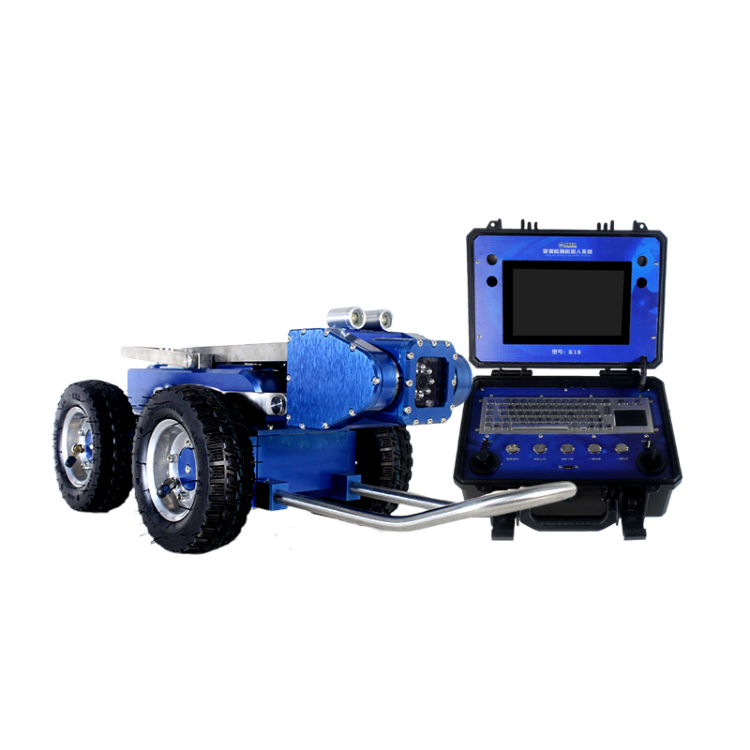

The new RJ-BOT K18 is a crawler camera system for visual inspection of suitable sewer, drainage and industrial wastewater pipes. It brings together the crawler, cable reel, battery and supplied tablet in a configuration that can be selected for your application.
Use the K18 to view pipe interiors, document visible conditions and retain inspection footage for review. Before ordering, share your pipe diameter, access conditions and required inspection distance so that the wheel configuration and equipment scope can be checked against your work.
Front and rear 5MP cameras help the operator monitor the inspection run and crawler movement. The camera adjustment system provides horizontal rotation through 360°, radial adjustment through 180° and a one-touch reset function. An elevating camera assembly helps position the viewing head within the pipe.
Adjustable lighting supports viewing in dark pipe interiors. Image visibility depends on the condition of the lens and the pipe environment; the system does not provide visibility through opaque water or deposits covering the lens.
Operate the equipment through the supplied tablet connected to the equipment's Wi-Fi. The crawler remains connected to the reel by cable for the inspection run.
The control interface provides movement, camera adjustment, lighting, recording and cable-reel functions. Follow the operating instructions for tablet positioning and select the correct reel setting for the installed wheel size.
The standard configuration includes a 100m cable, with a specified working distance of 100m. Actual travel distance depends on pipe layout, access, deposits and operating conditions.
Automatic, manual and hand-assisted cable reeling give the operator options for cable management. An electronic encoder provides distance counting, with a reset function for setting the start of a run.
Capture video and screenshots during an inspection and enter project information through the application. This information can be displayed with the inspection footage, helping keep recordings associated with the relevant job.
If your client requires a particular file format, reporting language or inspection-data workflow, send us an example before ordering. We will check the required output against the supplied system configuration.
The K18 application range is DN200–DN2000. The standard equipment list includes 4-inch and 10-inch wheel sets; a 6-inch wheel set is optional.
Choose the wheel configuration according to the pipe size and site conditions. Use the corresponding reel setting in the application whenever the wheel size is changed. Confirm the required configuration rather than assuming one setup covers every pipe in the stated range.

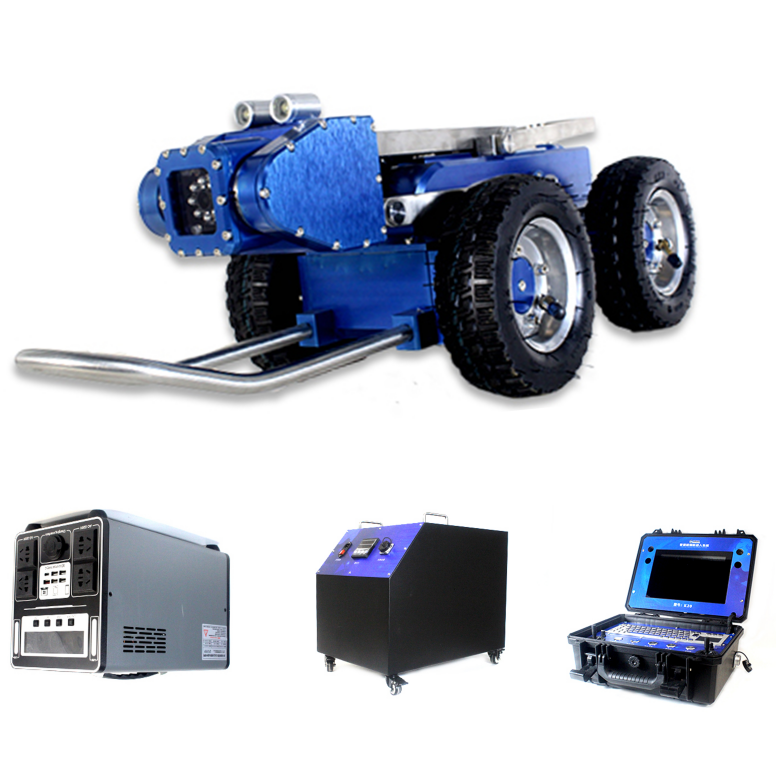

The standard equipment list in the manual includes:
- K18 crawler and camera assembly
- Cable reel with installed controller and connection cable
- Power battery, connection cable and battery charger
- Supplied tablet and its charger
- 4-inch and 10-inch wheel sets with the specified fasteners
- Quick-release wheel tool
- 5m auxiliary lowering rope
- Hand-assisted reel handle
- Operating manual
The 6-inch wheel set is optional. Your itemised quotation will confirm the final equipment scope and selected accessories.
The K18 is intended for visual pipe inspection. It is not a pipe-cleaning machine. Check pipe diameter, inspection distance, bends, deposits, access points and water conditions before selecting a configuration.
The crawler's IP68 specification does not apply to the complete system. Keep the reel out of standing water and follow the manual's cleaning and storage instructions. Operating conditions and the required documentation should be reviewed for the intended job before purchase.
The product price is USD 7,200. Shipping and taxes are additional. Send your destination and application details for an itemised quotation.
Before purchase, confirm the equipment scope, dispatch arrangement, warranty coverage, spare-parts process and repair freight responsibilities. Support and delivery details will be set out in the quotation and agreed supply terms.
Tell us the country of use, pipe diameter, required inspection distance and intended application. If available, include a pipe photograph or a sample of the inspection output your client requires.
We will review the proposed configuration and provide an itemised quotation for your project.
| Item | Specification | |
|---|---|---|
| Product | New K18 CCTV pipe inspection crawler system | |
| Application range | DN200–DN2000; configuration selection required | |
| Specified working distance | 100m; actual reach depends on conditions | |
| Standard cable length | 100m | |
| Cameras | Front and rear 5MP cameras | |
| Camera adjustment | 360° horizontal / 180° radial adjustment; one-touch reset | |
| Camera lift | 60° lift angle / 200mm lift height | |
| Drive | Dual-motor drive system | |
| Lighting | 12 × 3W lights | |
| Crawler protection | IP68, as specified in the manual | |
| Reel protection | Protected against light splashes; keep out of standing water and do not wash down | |
| Control | Supplied tablet connected to the equipment's Wi-Fi; crawler connected to reel by cable | |
| Cable reeling | Automatic / manual / hand-assisted | |
| Distance counting | Electronic encoder with reset | |
| Battery | 60V, 15Ah lithium battery | |
| Recording | Video, screenshots and project-information overlay | |
| Standard wheel sets | 4-inch × 6 wheels; 10-inch × 4 wheels | |
| Optional wheel set | 6-inch | |
| Crawler weight | 13.3kg with 4-inch wheels; 18.9kg with 10-inch wheels | |
| Reel weight | 53.6kg, as listed in the manual; confirm packed shipping weight in the quotation |
What pipe sizes can the new K18 inspect?
The manual lists an application range of DN200–DN2000. Suitability depends on the selected wheel configuration and pipe conditions. Tell us your pipe dimensions and access conditions before ordering.
Is the K18 supplied as a complete system?
The standard equipment list includes the crawler, cable reel, battery, supplied tablet and listed accessories. Your quotation confirms the exact configuration. The optional 6-inch wheel set and any additional requirements should be listed separately.
Is the crawler wireless inside the pipe?
No. The tablet connects to the equipment's Wi-Fi, while the crawler is connected to the reel by cable. The standard 100m cable configuration should not be described as 100m wireless operation.
Can the K18 record inspection results?
Yes. The application provides video recording, screenshots and project-information overlay. If you require a particular report format, output language or software workflow, send us an example so that it can be checked before purchase.
Is the entire system waterproof?
No. The manual specifies IP68 for the crawler. The reel is protected against light splashes and must be kept out of standing water. Do not wash down the reel.
Does it always reach the full 100m distance?
The specified working distance and standard cable length are 100m. Actual travel depends on pipe layout, deposits, access and operating conditions. Share your site information for a configuration check.
Which wheel sets are included?
The standard list includes 4-inch and 10-inch wheel sets. The 6-inch wheel set is optional. Select the reel setting that corresponds to the installed wheel size when operating the system.
How much does the new K18 cost?
The product price is USD 7,200. Shipping and taxes are not included. Request an itemised quote for the equipment and destination you require.
Is the K18 also a pipe-cleaning robot?
No. The K18 is a CCTV pipe inspection crawler. If cleaning is required before inspection, discuss that work separately from the inspection-equipment configuration.
What should I send when requesting a quotation?
Send your country, pipe diameter, required inspection distance and intended use. Information about access points, bends, deposits and required output files will help with the configuration review.
